XtreamProtector

XtremeProtector | Built to Withstand the Harshest Conditions

The Xtreamprotector, a key component of the Xtreamfilter series, is a robust filtration system designed to effectively eliminate fine sediments, heavy metals, and phosphorus from stormwater runoff.

XtreamProtector

Use mouse to rotate

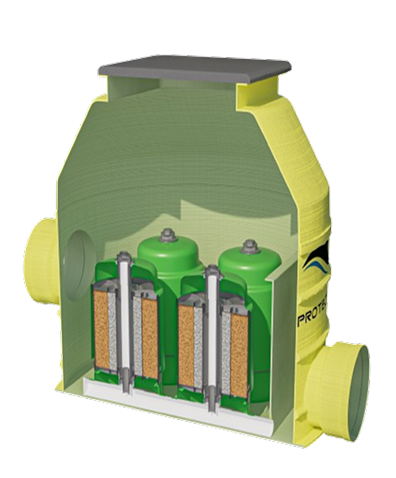

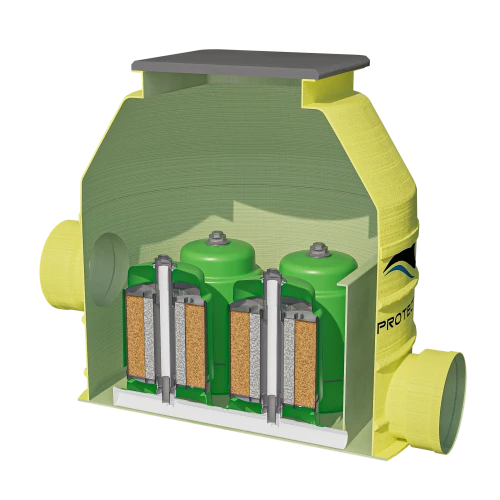

The water flows up the outer channel, horizontally through the dual filter media, and rises up the inner tube into the retention chamber before flowing out the outlet dropper pipe. The filter media is protected by a 1000-micron bag mesh and utilizes adsorption, precipitation, chemical filtration, physical filtration, andattachment techniques for removal. The outlet system can vary depending on the installation, with OSD in-situ concrete systems allowing for pipework concreted into the tank, or elevated PVC pipes, elbows, and tee systems.

The system utilizes siphon filtration and self-cleaning techniques through backwash to ensure constant water flow and increase the lifespan of the filter media.

Download

XtreamProtector Overview

Residential Subdivisions
Ensure efficient handling of stormwater in residential areas, reducing the risk of flooding and promoting the groundwater recharge.
Sustainable Development:
Support eco – friendly designs by facilitating rainwater harvesting and reuse within housing developments.
Flood Prevention:
Provides robust stormwater management for large – scale commercial and industrial sites, mitigating the risk of water damage during heavy rainfall.
Regularly Compliance:
Regularly Compliance:
Helps meet stringent environmental and stormwater management regulations for industrial operations..
Water Conservation:
capture and stores software for reuse in irrigation landscaping and non potable app applications promoting water conservation
Cost Efficiency:
Reduces reliance on municipal water supplies by providing an alternative water source for various non potable-uses

PROTECTOR CATALOGS

AS DOWNLOAD

Maintenance Manual

Product Boucher

Product Equivalency
Certificate

Installation Manual

The modular design of the Xtreamprotector allows seamless integration into a high-strength FRP system,streamlining installation and maintenance procedures. The innovation behind the Xtreamfilter series ensures maximized water surface area contact, enabling the system to accommodate high flow rates while delivering clean and filtered water.

Download

Advantages of XtreamProtector

The Xtreamfilter is a highly efficient tertiary treatment system that removes TSS, phosphorus, nitrogen, gross pollutants, hydrocarbons, oils, and heavy metals. Built with a durable FRP shell and dual filtration media, it combines adsorption, precipitation, chemical, and physical filtration techniques to target specific contaminants. Water passes through protective 1000-micron mesh, flows across the media, and rises into a retention chamber before discharge. The system supports flexible outlet setups, including OSD in-situ concrete or elevated PVC configurations. With siphon filtration and self-cleaning backwash, it ensures constant flow and extended media life. Pre-assembled for easy installation and low maintenance, the Xtreamfilter is a versatile solution for diverse site requirements.
