Trap It

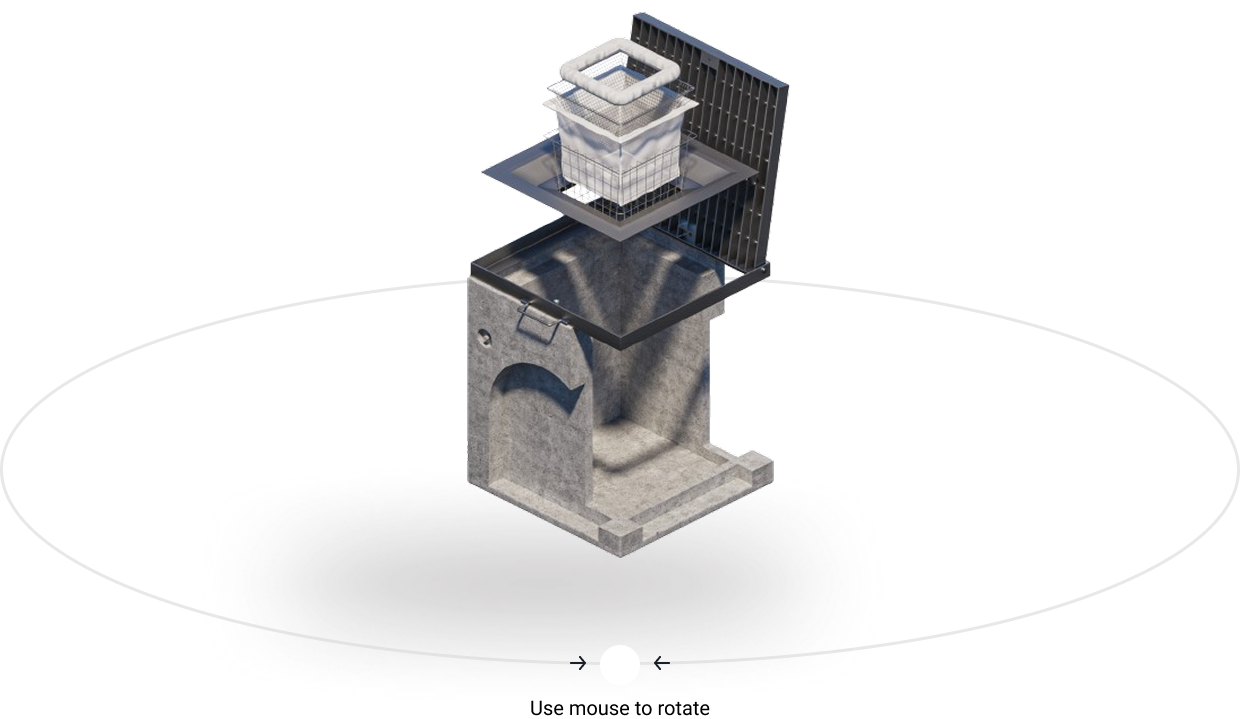

Use mouse to rotate

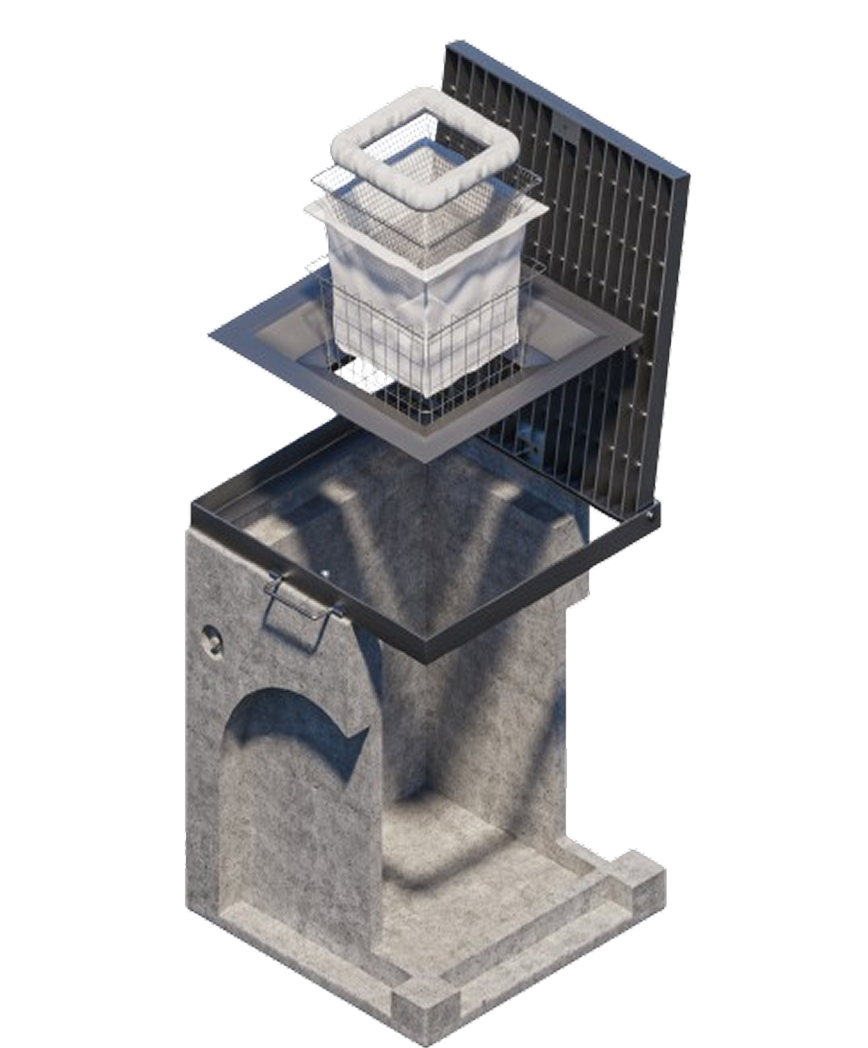

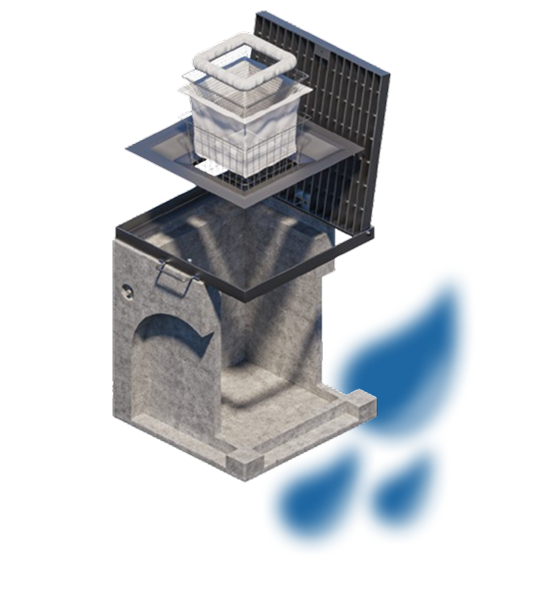

The Protector Trap-It is a smart and efficient Gross Pollutant Trap Pit Insert designed with simplicity and performance in mind. Built for easy installation and low-maintenance operation, it offers a cost-effective solution for stormwater management. With a 3-stage physical filtration system, the Trap-It ensures structural integrity, high capture volume, and reliable load capacity. Suitable for both new builds and retrofit applications, it provides a seamless and affordable way to manage pollutants.
Its compact yet durable design makes it adaptable to a wide variety of site conditions without requiring major construction works. The Trap-It stands out as a practical option for councils, developers, contractors, and property owners who want an environmentally responsible and sustainable way to protect stormwater systems.
Trap It Product Application
PROTECTOR CATALOGS
AS DOWNLOAD

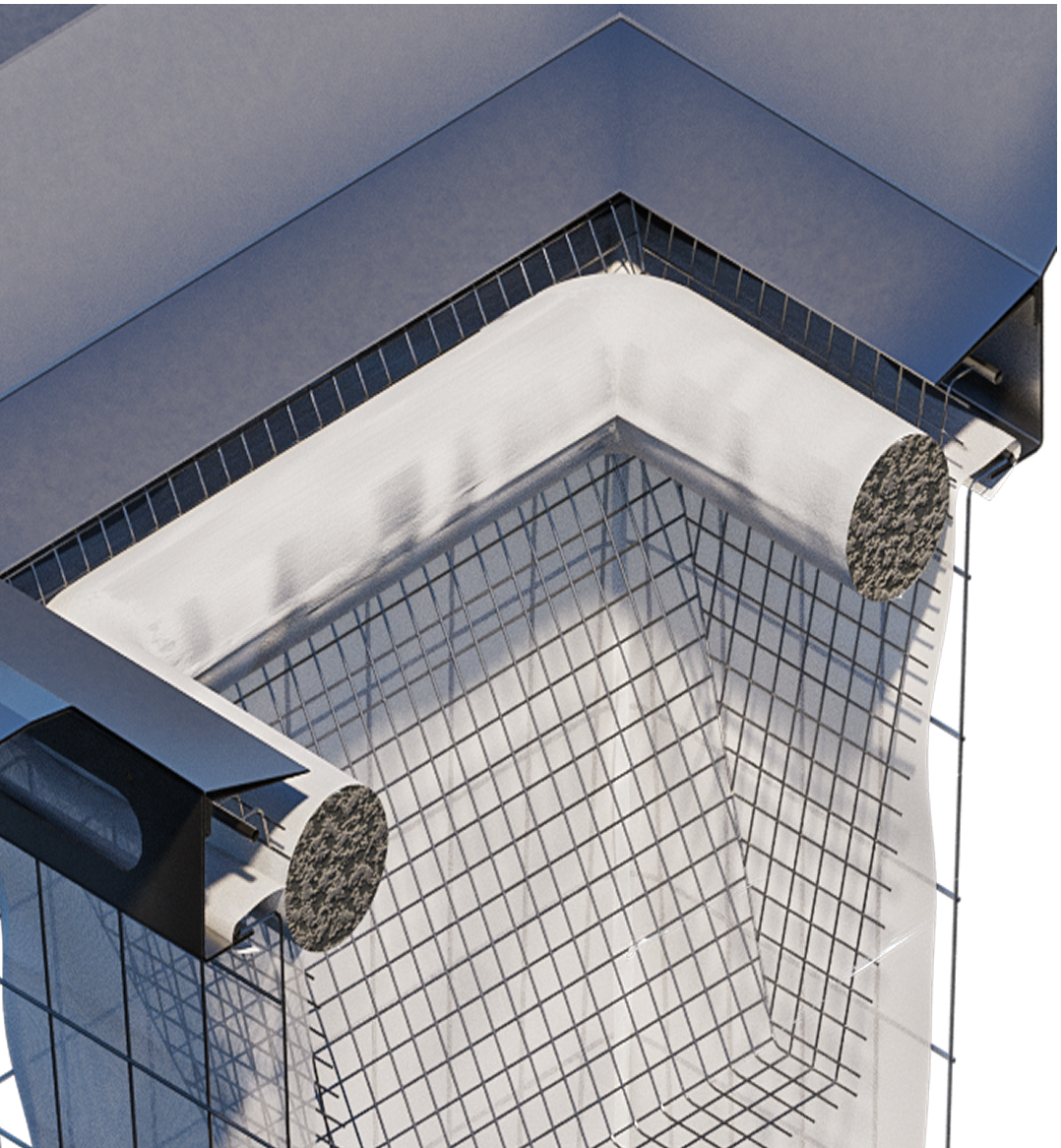

Utilising multiple filtration screens, the Trap-It captures gross pollutants from a wide range of sources, keeping harmful waste out of waterways. It effectively traps larger debris such as leaves, bark, plastics, and cigarette butts, while its 100-micron mesh bag targets smaller contaminants like silt, dirt, and sediment that may carry toxic chemicals. The three layers of filtration not only boost pollutant capture rates but also protect the system under high load conditions, ensuring reliable long-term performance.
This layered design maximises filtration efficiency while minimising maintenance requirements. As a result, stormwater is filtered more thoroughly, supporting cleaner discharge and healthier ecosystems.
Advantages of Trap It
The Protector Trap-It plays a vital role in safeguarding rivers, lakes, streams, and marine environments by preventing pollutants from entering water ecosystems. Its simple design makes it easy to install, cost-efficient to maintain, and highly effective in capturing pollutants larger than 5mm, along with fine sediment. By reducing foul-smelling waste, deterring vermin, and protecting aquatic habitats, the Trap-It delivers a sustainable solution for cleaner, healthier waterways and more efficient stormwater management systems.
In addition, its proven effectiveness supports compliance with environmental regulations. Communities benefit from cleaner public spaces, reduced pollution risks, and enhanced long-term water quality.
Product Application
- Residential Areas
- Park Lands
- Sporting Facilities
- High Pedestrian Traffic
- Industrial / Commercial Complexes
- Shopping Precincts
- Roadways
Trap it Specification
| Model ID | Model Description | Pit Length (mm) | PIT Width (mm) | Basket Depth (mm) | Drawings |
|---|---|---|---|---|---|
| TRPT-350-4545 | TrapIT for 450 x 450 pit openingwith 350S basket | 450 | 450 | 350 | Download |
| TRPT-350-66 | 2 TrapIT for 600 x 600 pit openingwith 350S basket | 600 | 600 | 350 | Download |
| TRPT-350-69 | TrapIT for 600 x 900 pit openingwith 350S baske | 600 | 900 | 350 | Download |
| TRPT-350.T * | TrapIT for up to 1050 x 1050 pitopening with 350S baske | Adjustable up to 1050 | Adjustable up to 1050 | 350 | Download |
| TRPT-450-4545 | TrapIT for 450 x 450 pit openingwith 450S basket | 450 | 450 | 450 | Download |
| TRPT-450-66 | TrapIT for 600 x 600 pit openingwith 450S basket | 600 | 600 | 450 | Download |
| TRPT-450-69 | TrapIT for 600 x 900 pit openingwith 450S basket | 600 | 600 | 450 | Download |
| TRPT-450-99 | TrapIT for 900 x 900 pit openingwith 450S baske | 900 | 900 | 450 | Download |
| TRPT-450.T * | TrapIT for up to 1050 x 1050 pitopening with 450S basket | Adjustable up to 1050 | Adjustable up to 1050 | 450 | Download |
Please fill out the following details so we can send the document to you.
Page Name: Trap-It
Model No:
