Ecoprotector

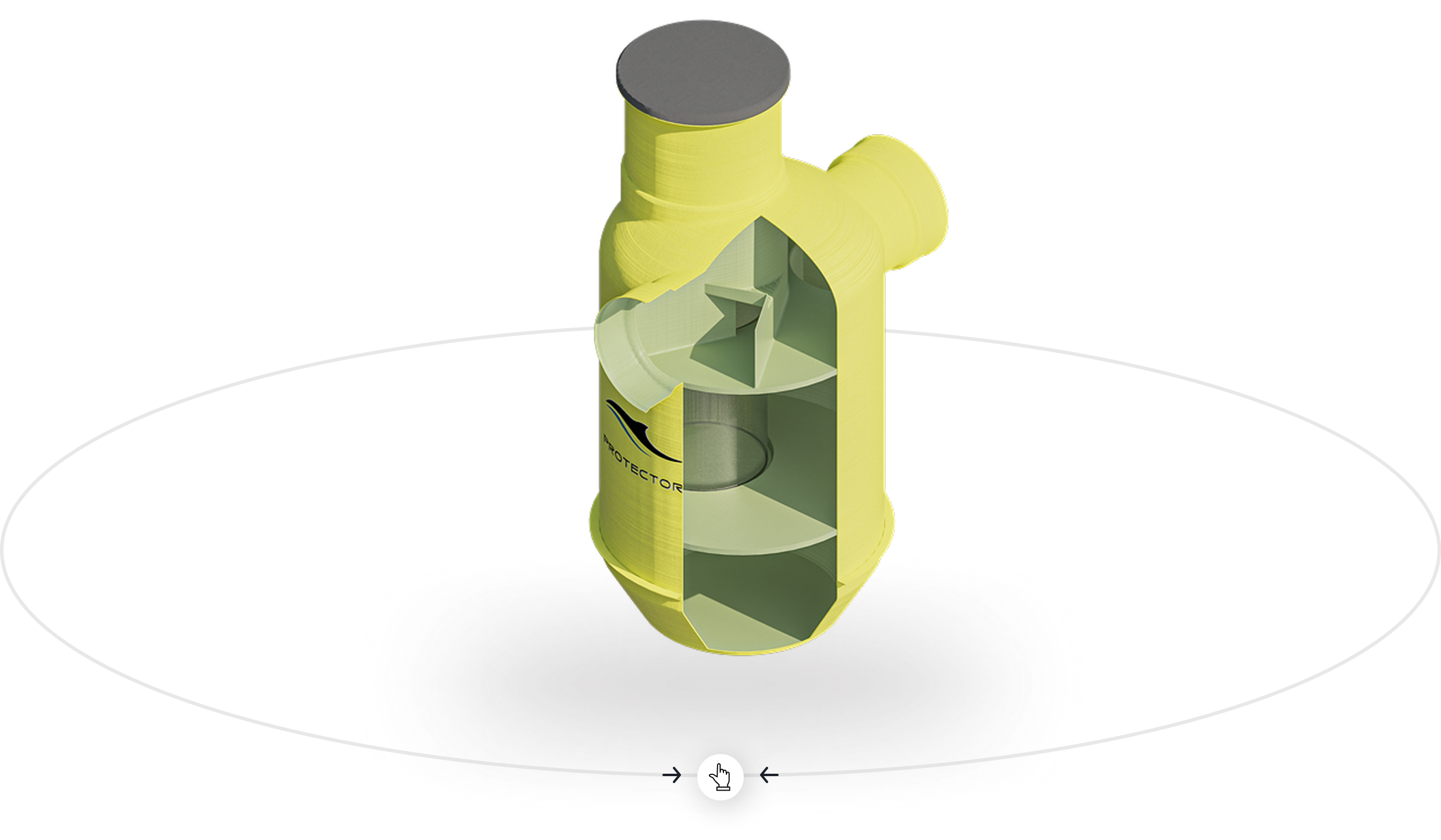

Use mouse to rotate
The EcoProtector is a high-capacity trash and litter removal GPT(Gross Pollutant Trap) with particulate removal down to 3mm.
The EcoProtector has been designed to trap solid debris including sediment and hydrocarbons under low-velocity conditions. These units are commonly used as primary treatment for the removal of pollutants in areas such as; residential subdivisions, roads, cars, parks, industrial applications, and other impervious areas that require stormwater treatment. The EcoProtector functions by physical screening, rapid sedimentation, and hydrodynamic separation processes. Gross pollutant traps are often used as part of a treatment process with other stormwater filtration devices to remove high loads of sediment and larger solids.
EcoProtector Product Application
PROTECTOR CATALOGS
AS DOWNLOAD

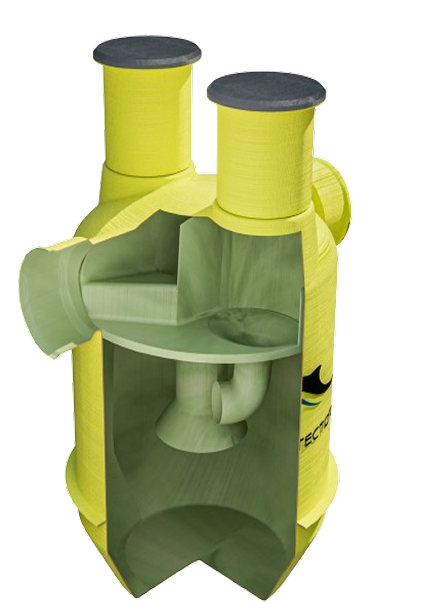

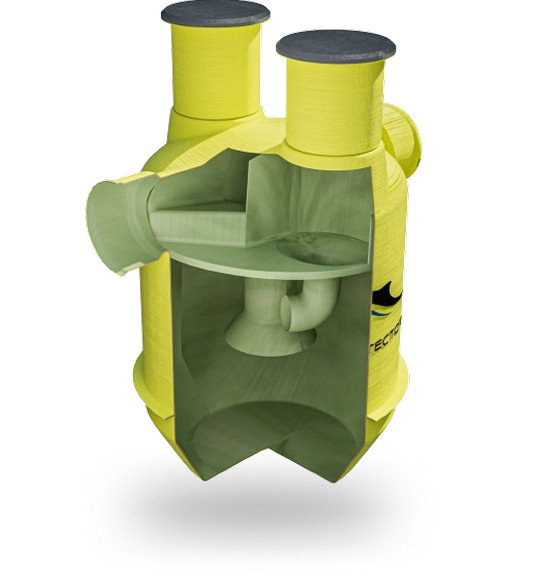

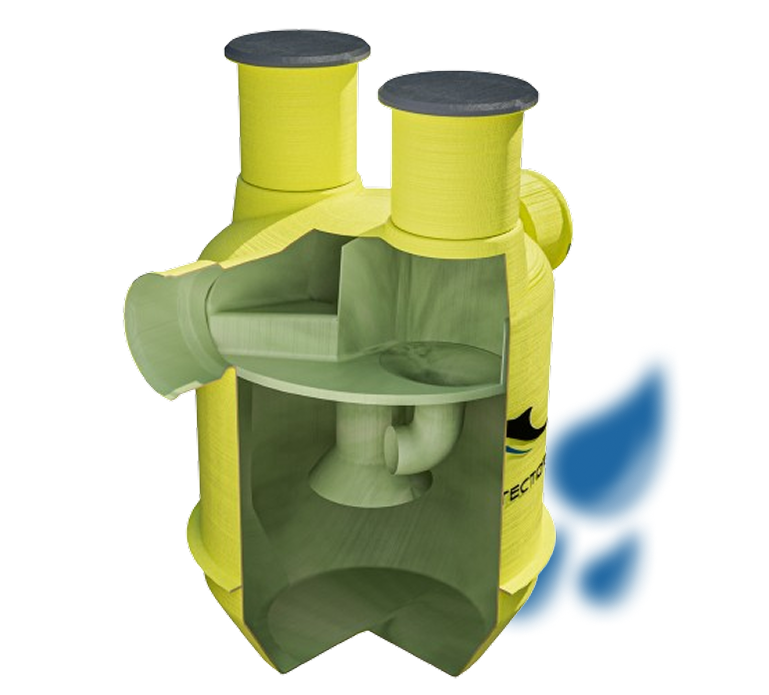

The EcoProtector is a primary treatment device designed to remove high loads of stormwater pollutants. The Protector Ecoprotector GPT features an advanced inlet weir, which generates a smooth fluid part to a vortex funnel for the transfer of pollutants into the storage chamber.
This innovative design provides superior pollution removal from stormwater inflows resulting in higher water quality. It separates and captures gross pollutants, sediments, silt, total suspended solids, some nutrients, and oil and grease.
During a storm event, when there is a large stormwater inflow entering the Ecoprotector, water can discharge freely over the weir to prevent any flow restriction
Advantages of EcoProtector
The EcoProtector is a primary treatment device designed to remove high loads of stormwater pollutants. The Protector Ecoprotector GPT features an advanced inlet weir, which generates a smooth fluid part to a vortex funnel for the transfer of pollutants into the storage chamber.
This innovative design provides superior pollution removal from stormwater inflows resulting in higher water quality.
Product Application
- Residential subdivisions
- Primary gross pollutants, oil and sediments
- Combine sewer overflow
- Stormwater harvesting projects
- Commercial and industrial developments
- Main stormwater drainage systems
- Retrofitting to existing stormwater drainage systems
Inline Eco Protector Specification
| Model ID | Treatment Flow Rate (L/S) | Internal Diameter (MM) | Depth Below Invert (MM) | Max Pipe Size (MM) | Sump Capacity (M3) | Drawings |
|---|---|---|---|---|---|---|
| ECP.1200 | 32 | 165 | 1200 | 2200 | 100 - 375 | Download |
| ECP.1500 | 105 | 480 | 1500 | 2400 | 100 - 375 | Download |
| ECP.1850 | 135 | 1020 | 1850 | 2550 | 225 - 600 | Download |
| ECP.2200 | 288 | 2900 | 2200 | 2550 | 375 - 900 | Download |
| ECP.2500 | 448 | 9500 | 2500 | 3500 | 600 - 1350 | Download |
| ECP.3000 | 894 | 13780 | 2500 | 2500 | 4500 | Download |
| ECP.3500 | 1905 | 22118 | 3500 | 5000 | 600 - 1800 | Download |
