Storm Protector

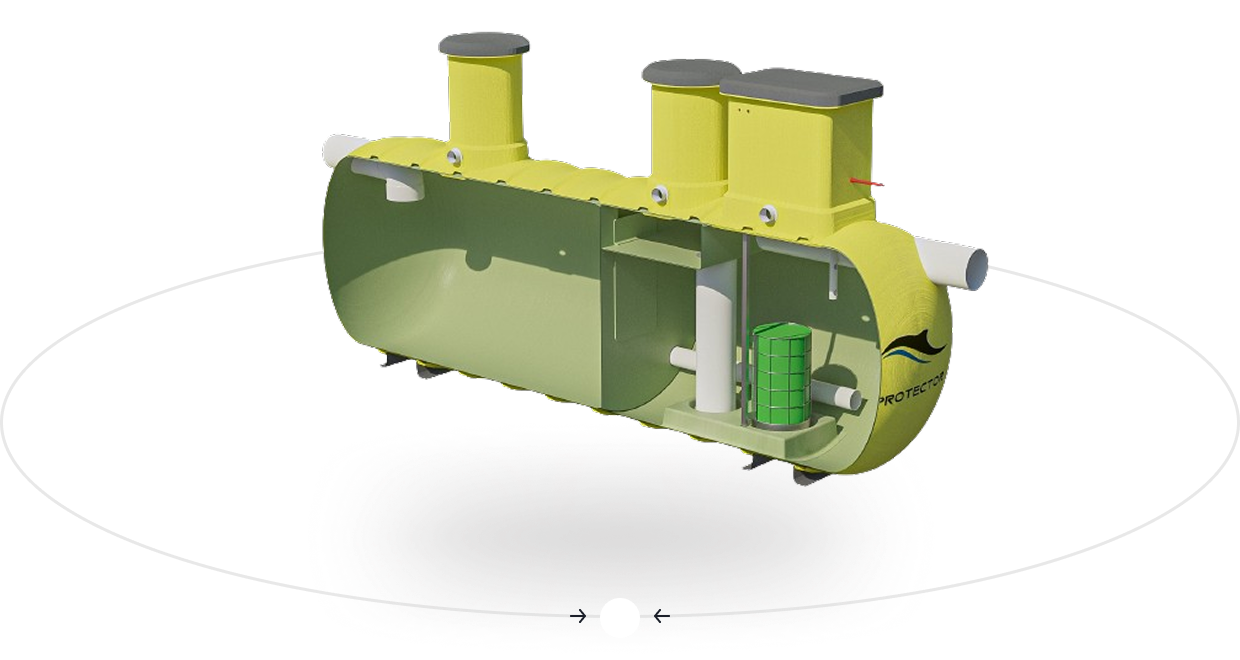

Use mouse to rotate

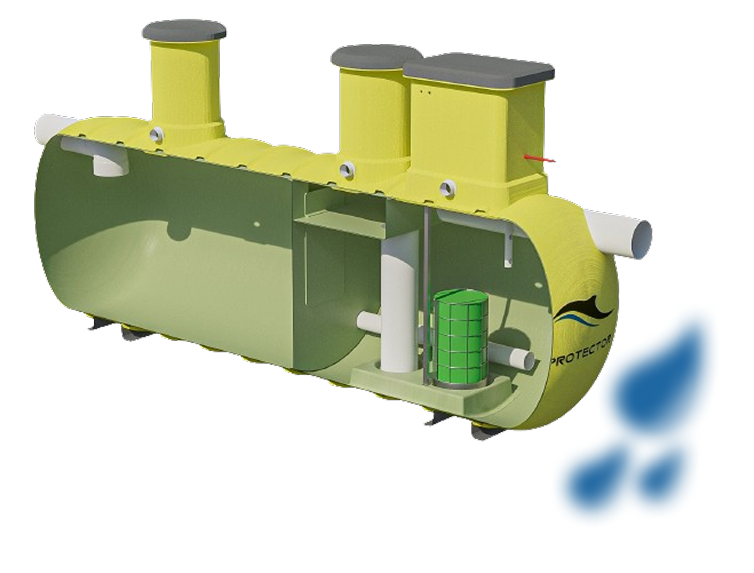

The Stormprotector is highly efficient at removing TSS and treating oily water and hydrocarbon runoff from medium-risk catchments, thanks o its advanced design. The separator utilizes a gravity-enhancing coalesce unit that facilitates particle sedimentation, particularly of these and fraction, and ensures that the sediment is retained in a silt trap chamber below the separator. The system has an oil trap mechanism that prevents the movement of any oil that isn’t dissolved and retained in the filter elements. The Stormprotector is an easy-to-install and maintain solution for medium-risk commercial and industrial applications. The in-line system has an internalbypass that allows it to be retrofitted in existing drainage systems, makingit ideal for medium-risk catchments.

Download

Tornado - GPT Product Application

  • Residential Subdivisions

    Ensure efficient handling of stormwater in residential areas, reducing the risk of flooding and promoting the groundwater recharge.

    Sustainable Development:

    Support eco – friendly designs by facilitating rainwater harvesting and reuse within housing developments.

    Flood Prevention:

    Provides robust stormwater management for large – scale commercial and industrial sites, mitigating the risk of water damage during heavy rainfall.

  • Regularly Compliance:

    Regularly Compliance:

    Helps meet stringent environmental and stormwater management regulations for industrial operations..

    Water Conservation:

    capture and stores software for reuse in irrigation landscaping and non potable app applications promoting water conservation

    Cost Efficiency:

    Reduces reliance on municipal water supplies by providing an alternative water source for various non potable-uses

PROTECTOR CATALOGS

AS DOWNLOAD

Maintenance Manual

Product Boucher

Product Technical Specification

Installation Manual

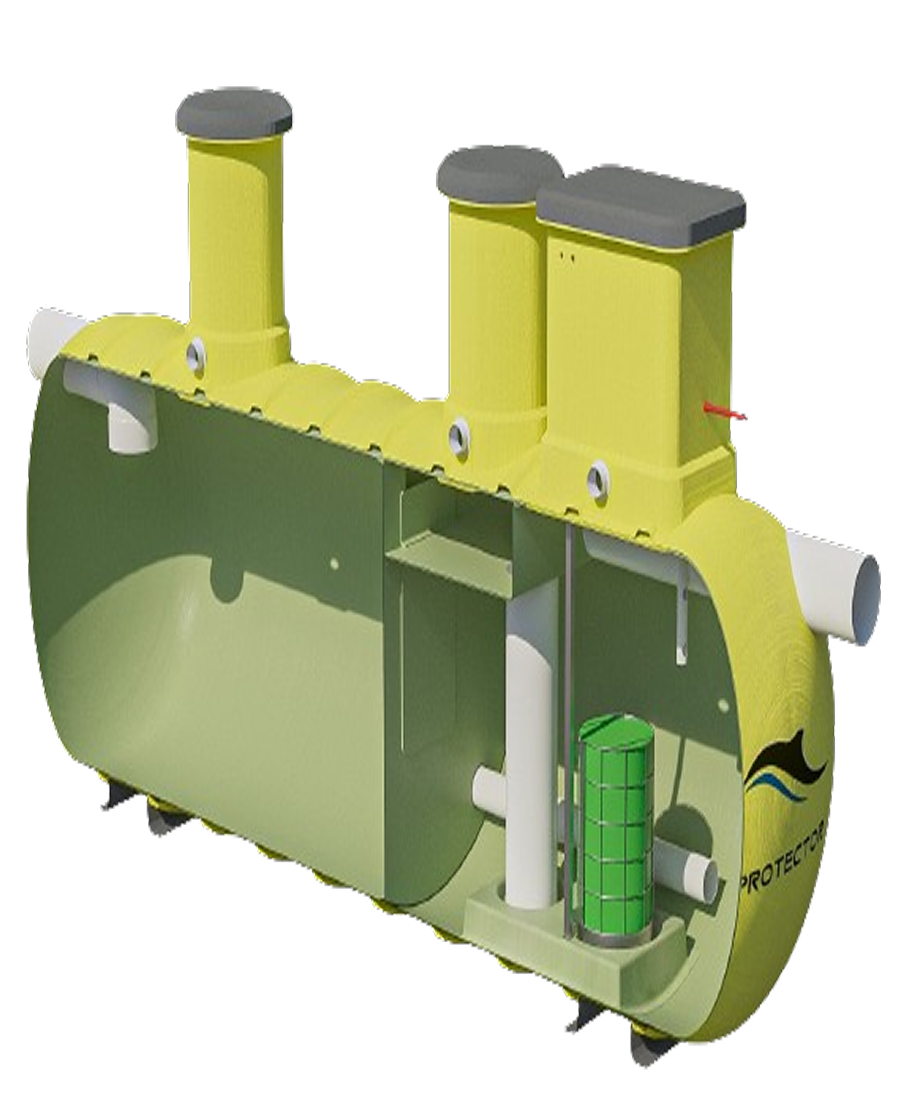

The system has two horizontallyconfigured chambers equipped with a coalescer unit that promotes theseparation of total suspended solids (TSS), light liquids, and pollutants.  The system has a retention period that provides quiescent conditions, which ensures efficiency. The off-line system is installed on a low flowline and is designed to treat a minimum of a 1 in 3 month ARI (4EY), with bypass options for flows above the design treatment flow rate to avoidflooding and transport of previously captured pollutant.

Download

Advantages of Tornado-GPT


The Stormprotector offers a reliable solution for managing stormwater in medium-risk catchments by effectively removing TSS, hydrocarbons, oily runoff, and light liquids before they reach waterways or storage systems. Its flexible design, available in both in-line and off-line configurations, allows for easy installation and retrofitting into existing drainage systems. With a gravity-enhancing coalescer, silt trap chamber, and oil trap mechanism, the system ensures efficient pollutant separation and retention. Simple to install and maintain, the Stormprotector not only improves water quality but also helps meet environmental compliance requirements, making it a practical choice for commercial and industrial applications.

Product Application

  • Carparks and Shopping centers
  • Transport depots
  • Aircraft Aprons
  • Maintenance and storage areas
  • Tunnels and highways
  • Recycling yards
  • Industrial,comeercial,residential estates

Product Specification

Model ID TREATMENT FLOW RATE (L/S) BYPASS FLOW RATE (L/S) SILT CAPACITY (L) WORKING CPACITY (L) UNIT LENGHT (L) UNIT DIA (mm) STANDARD PIPEWORK DIA Drawings
SP.2.DC.R2-1 2 90 200 791 1,100 1050 150 Download
SP.4.DC.R2-1 4 90 20 165 2,100 1050 150 Download
SP.8.DC.R2-1 8 180 820 2,984 3,000 1200 225 Download
SP.13.DC.R4-1 13 250 1,300 4,896 2,400 1500 375 Download
SP.15.DC.R4-1 15 250 1,500 5,616 3,750 1500 375 Download
SP.20.DC.R4-1 20 480 2,000 7,495 3,350 1850 450 Download
SP.30.DC.R5-1 30 480 2,300 11,228 5,450 1850 450 Download
SP.40.DC.R6-1 40 480 4,100 14,950 7,500 1850 450 Download
SP.50.DC.R5-2 50 480 5,100 18,678 8,000 1850 450 Download
SP.60.DC.R5-2 60 480 6,100 22,405 9,550 2550 450 Download
SP.70.DC.R5-2 70 660 7,100 26,224 7,900 2200 750 Download
SP.80.DC.R6-2 80 660 8,100 29,888 8,850 2200 750 Download
SP.100.DC.R5-3 100 660 10,200 37,392 11,000 2500 750 Download
SP.110.DC.R5-3 110 1400 11,200 10,000 10,000 2500 900 Download
SP.120.DC.R6-3 120 1400 12,200 45,131 10,800 2500 900 Download
SP.150.DC.R5-4 150 1400 16,000 56,116 13,350 2500 1,050 Download
SP.180.DC.R6-4 180 1600 18,300 67,949 11,000 3000 1,200 Download
SP.200.DC.R6-4 200 2000 20,500 76,029 9,000 3500 1,200 Download
SP.250.DC.R7-4 250 2000 25,500 93,825 11,000 3500 1,200 Download
SP.300.DC.R7-5 300 2000 30,500 112,511 13,100 3500 1,200 Download
SP.350.DC.R7-5 350 2000 35,500 130,751 15,200 3500 1,200 Download

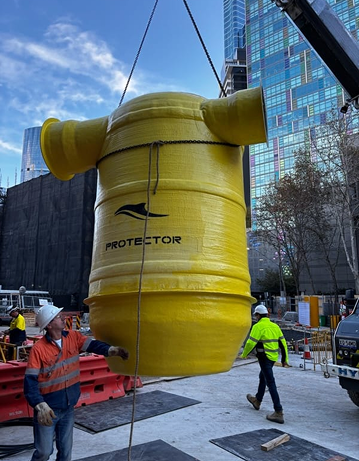

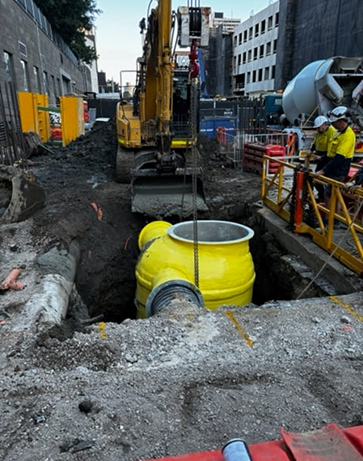

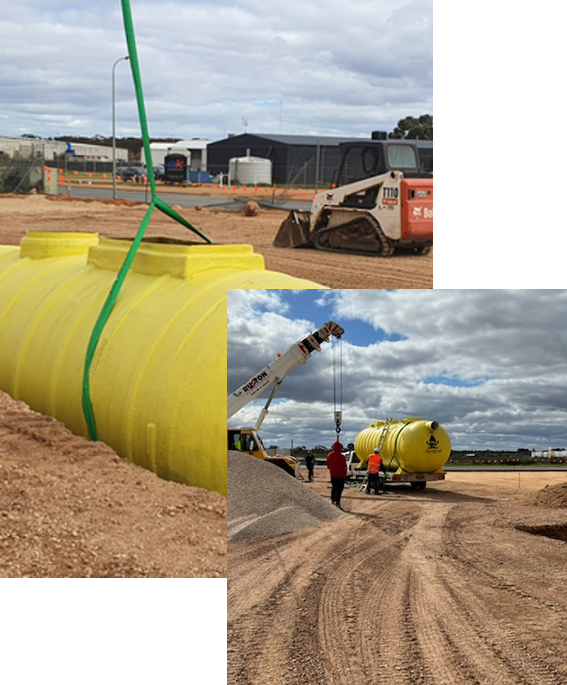

Our Projects

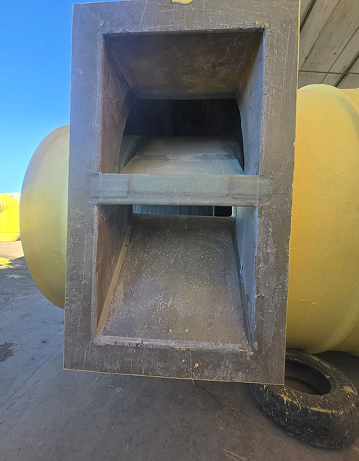

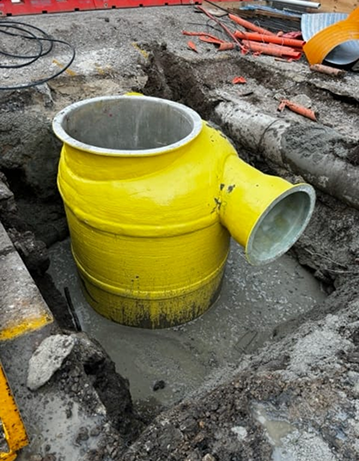

Project 1
