Xtreamfilter

XtreaFilter – Advanced Filtration for Extreme Conditions

The Xtreamfilter is an efficient filtration system that removes fine sediments, heavy metals, and phosphorus from stormwater runoff.

Xtreamfilter

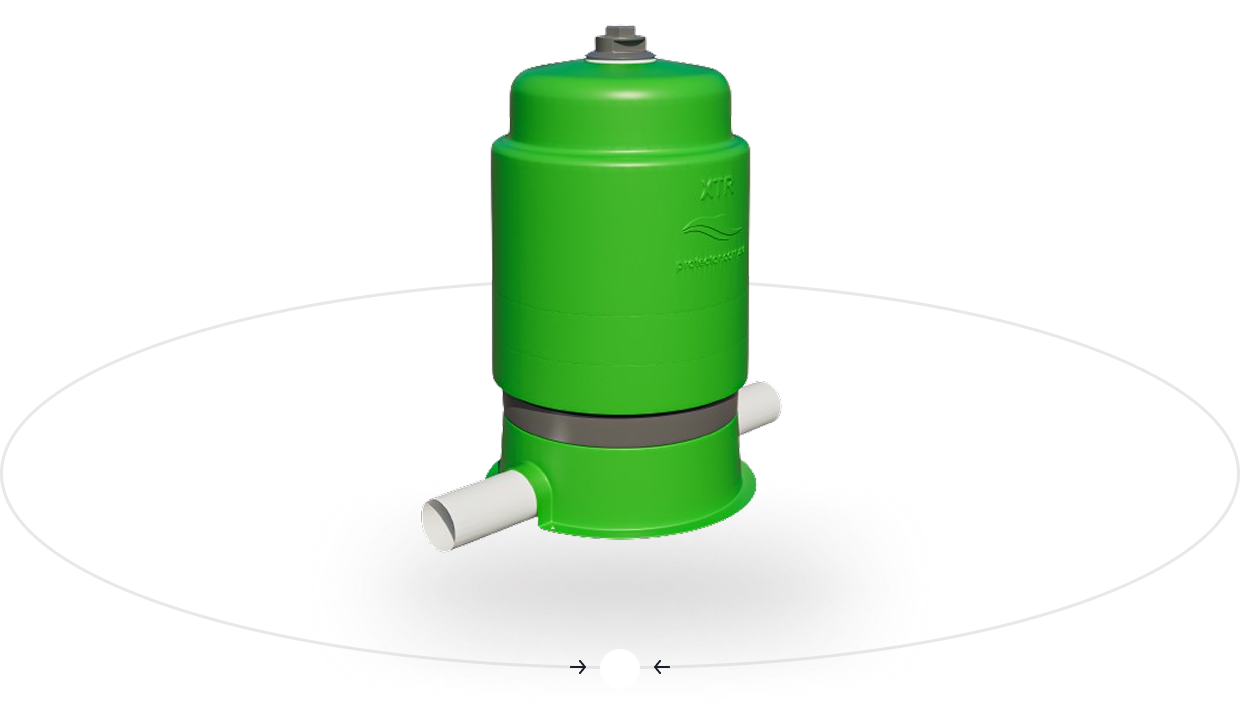

Use mouse to rotate

Xtremefilter Overview

The Xtreamfilter is a highly efficient and comprehensive tertiary treatment filter that effectively removes TSS, phosphorus, nitrogen, gross pollutants, hydrocarbons, oils, and heavy metals. The filter is constructed with an outer FRP shell that surrounds a cylindrical cylinder filled with specially designed filtration media that targets specific contaminants using a range of filtration techniques. The water flows up the outer channel, horizontally through the dual filter media, and rises up the inner tube into the retention chamber before flowing out the outlet dropper pipe.

The filter media is protected by a 1000-micron bag mesh and utilizes adsorption, precipitation, chemical filtration, physical filtration, and attachment techniques for removal. The outlet system can vary depending on the installation, with OSD in-situ concrete systems allowing for pipework concreted into the tank, or elevated PVC pipes, elbows, and teesystems.

The system utilizes siphon filtration and self-cleaning techniques through backwash to ensure constant water flow and increase the lifespan of the filter media. Installation and maintenance are simple, and the system comes pre-assembled in a FRP-horizontal encasing.The Xtreamfilter is an exceptional filtration system suitable for
various site demands.

Download

Xteamfilter Product Application

Residential Subdivisions
Ensure efficient handling of stormwater in residential areas, reducing the risk of flooding and promoting the groundwater recharge.
Sustainable Development:
Support eco – friendly designs by facilitating rainwater harvesting and reuse within housing developments.
Flood Prevention:
Provides robust stormwater management for large – scale commercial and industrial sites, mitigating the risk of water damage during heavy rainfall.
Regularly Compliance:
Regularly Compliance:
Helps meet stringent environmental and stormwater management regulations for industrial operations..
Water Conservation:
capture and stores software for reuse in irrigation landscaping and non potable app applications promoting water conservation
Cost Efficiency:
Reduces reliance on municipal water supplies by providing an alternative water source for various non potable-uses

PROTECTOR CATALOGS

AS DOWNLOAD

Maintenance Manual

Product Boucher

Product Equivalency
Certificate

Installation Manual

Advantages of Xtreamfilter

The system utilizes siphon filtration and self-cleaning techniques through backwash to ensure constant water flow and increase the lifespan of the filter media. Installation and maintenance are simple, and the system comes pre assembled in a FRP-horizontal encasing. The Xtreamfilter is an exceptional filtration system suitable for various site demands.

Product Application
