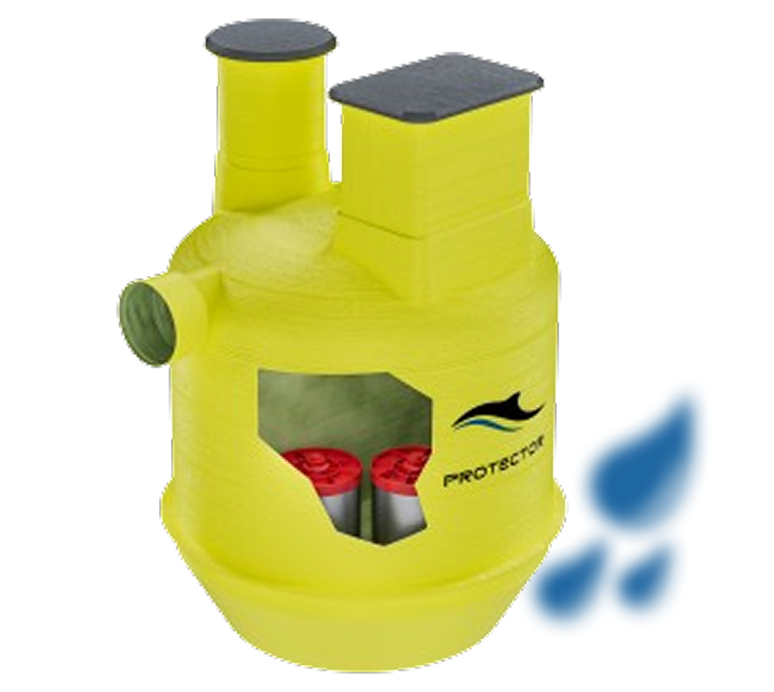

EnviroSave

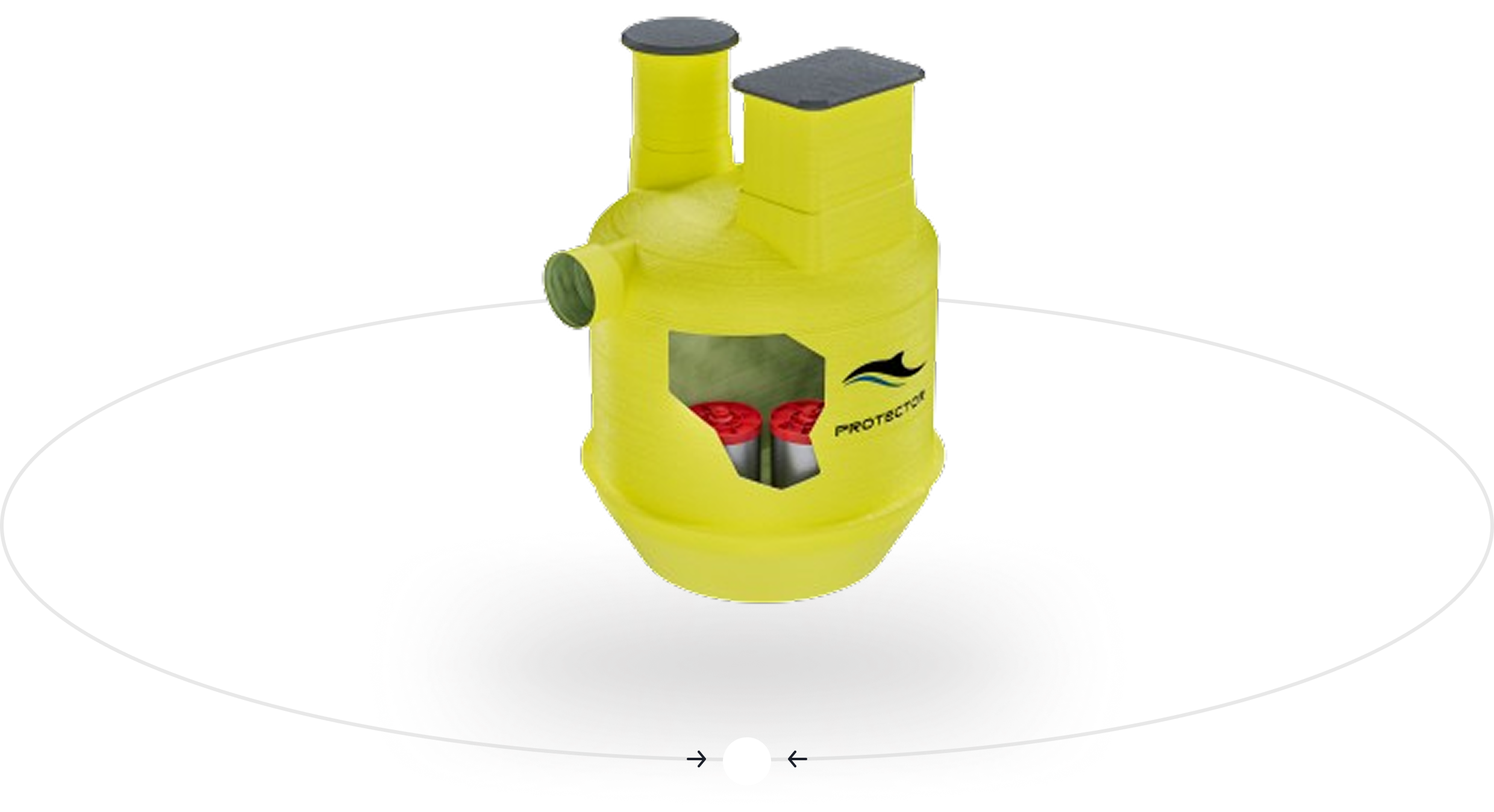

Use mouse to rotate
Envirosave Specification
| Model ID | Treatment Flow Rate (L/S) | Internal Diameter (MM) | Depth Below Invert (MM) | Max Pipe Size (MM) | Sump Capacity (M3) | Floatables Volume (MM) | Bypass Flow Rate (L/S) | Drawings |
|---|---|---|---|---|---|---|---|---|
| EVS.1500.1 | 1 | 8 | 20 | 165 | 1500 | 2000 | 300 | Download |
| EVS.1500.2 | 2 | 16 | 20 | 165 | 1500 | 2000 | 300 | Download |
| EVS.1850.2 | 2 | 16 | 32 | 165 | 1850 | 2400 | 450 | Download |
| EVS.1850.3 | 2 | 24 | 32 | 165 | 1850 | 2400 | 450 | Download |
| EVS.2200.2 | 2 | 16 | 105 | 480 | 2200 | 2550 | 600 | Download |
| EVS.2200.3 | 3 | 24 | 105 | 480 | 2200 | 2550 | 600 | Download |
| EVS.2200.4 | 4 | 32 | 105 | 480 | 2200 | 2550 | 600 | Download |
| EVS.2200-5 | 5 | 40 | 105 | 480 | 2200 | 2550 | 600 | Download |
| EVS.2500.5 | 5 | 40 | 135 | 480 | 2200 | 2550 | 750 | Download |
| EVS.2500.6 | 6 | 48 | 135 | 1020 | 2500 | 2550 | 750 | Download |
| EVS.3000.7 | 7 | 56 | 288 | 2900 | 3000 | 3000 | 900 | Download |
| EVS.3000.8 | 8 | 64 | 288 | 2900 | 3000 | 3000 | 900 | Download |
| EVS.3000.9 | 9 | 72 | 288 | 2900 | 3000 | 3000 | 900 | Download |
